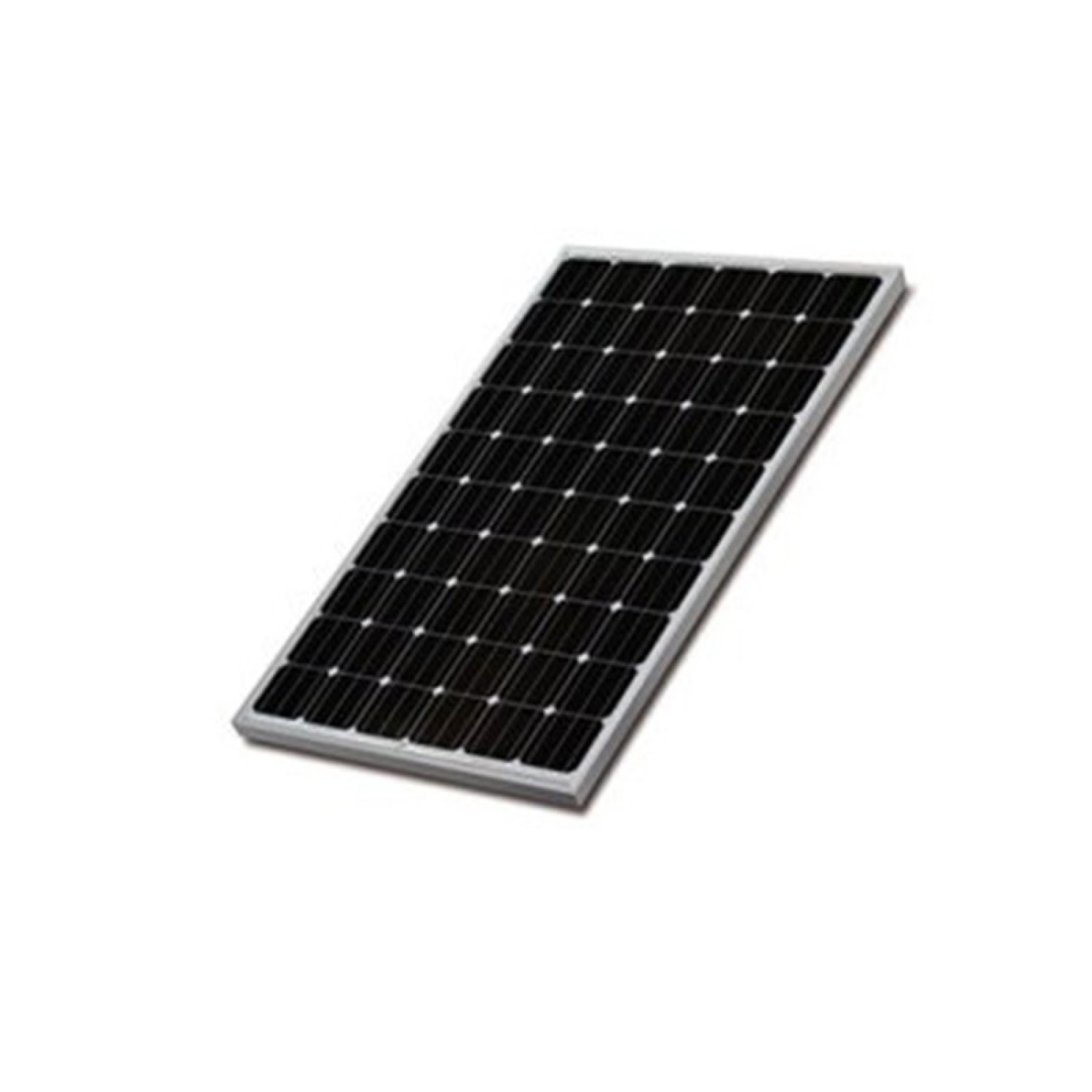

PV POLYCRYSTALLINE SOLAR MODULE 200Wp, 24VDC, Dimensions: 1640×680×35 mm, 15kg
Product Code: SRP200
BARCODE: 5208055097845
Technical Specifications & Downloads
Not Availabe
Details &
Technical Specifications
| Juction box | IP65 |
| Maximum Power Current (Imp) | 8A |
| Temperature Coefficient αPm | -0,43% / °C |
| PV Solar Module Type | Polycrystalline |
| Maximum Power Voltage (Vmp) | 25V |
| Voltage (Volt) | 24V DC |
| Open Circuit Voltage (Voc) | 30,25V |
| Temperature Coefficient αVoc | -0,33% / °C |
| +0,04% / °C | |
| Short Circuit Current (Isc) | 8,8A |
| Power | 200 W |
