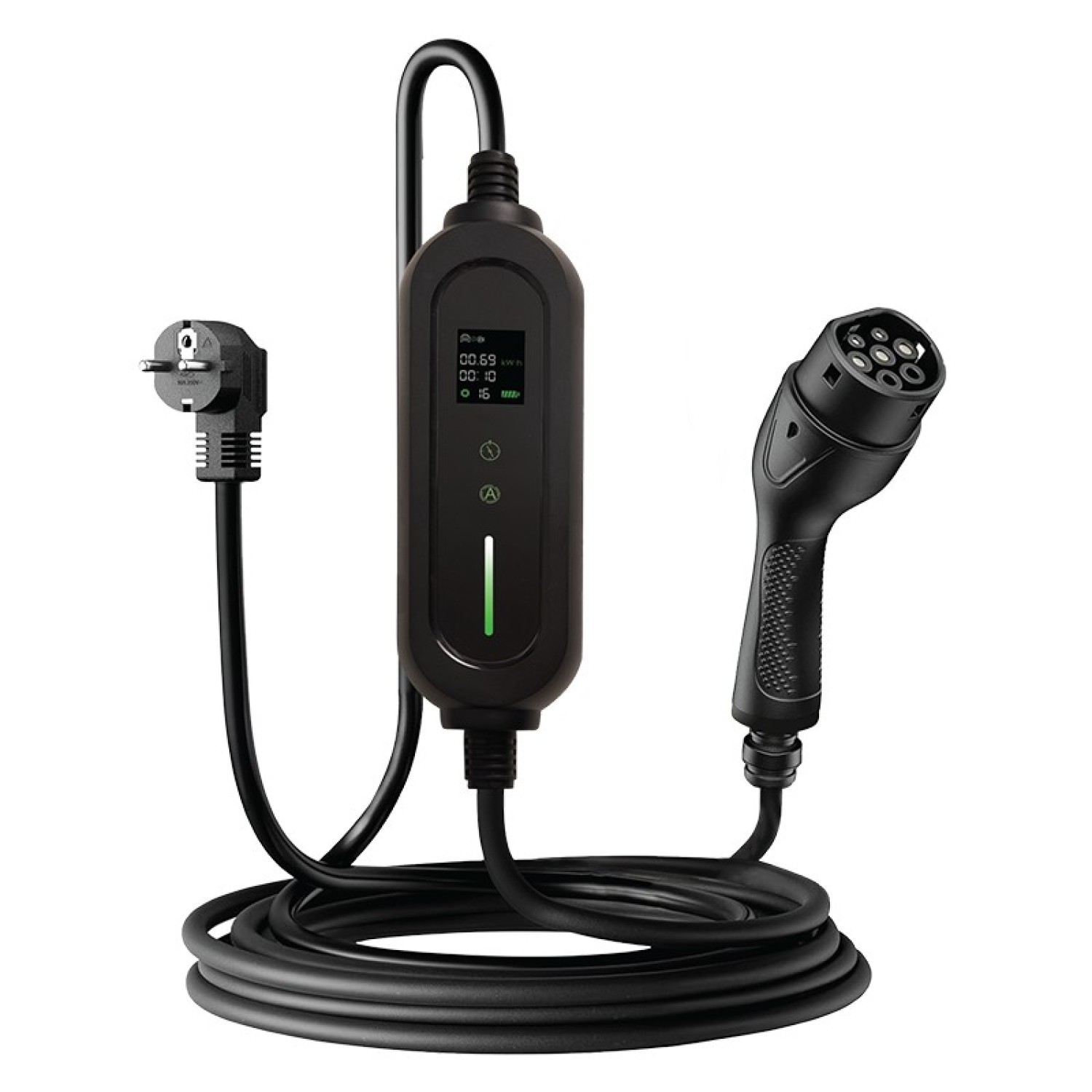

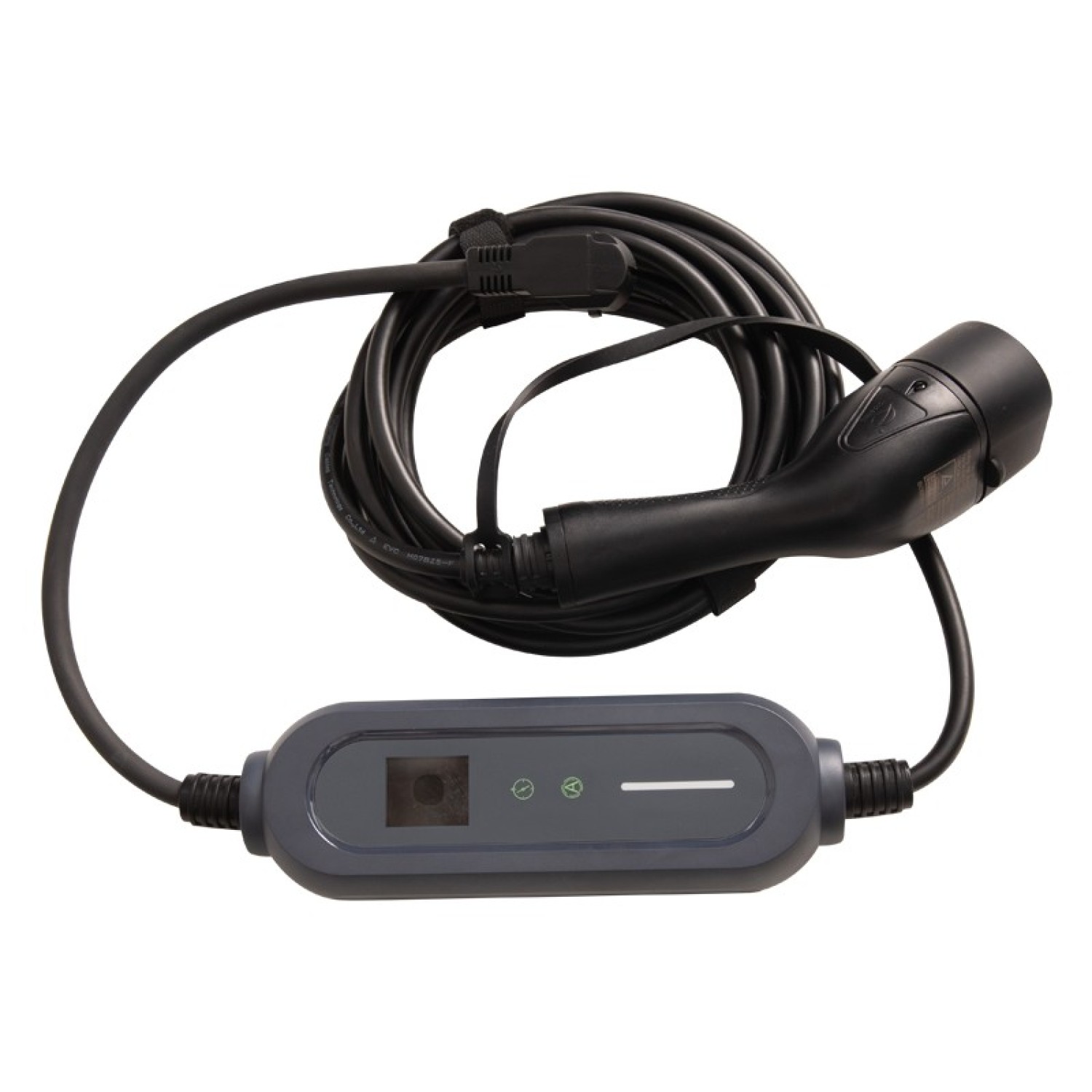

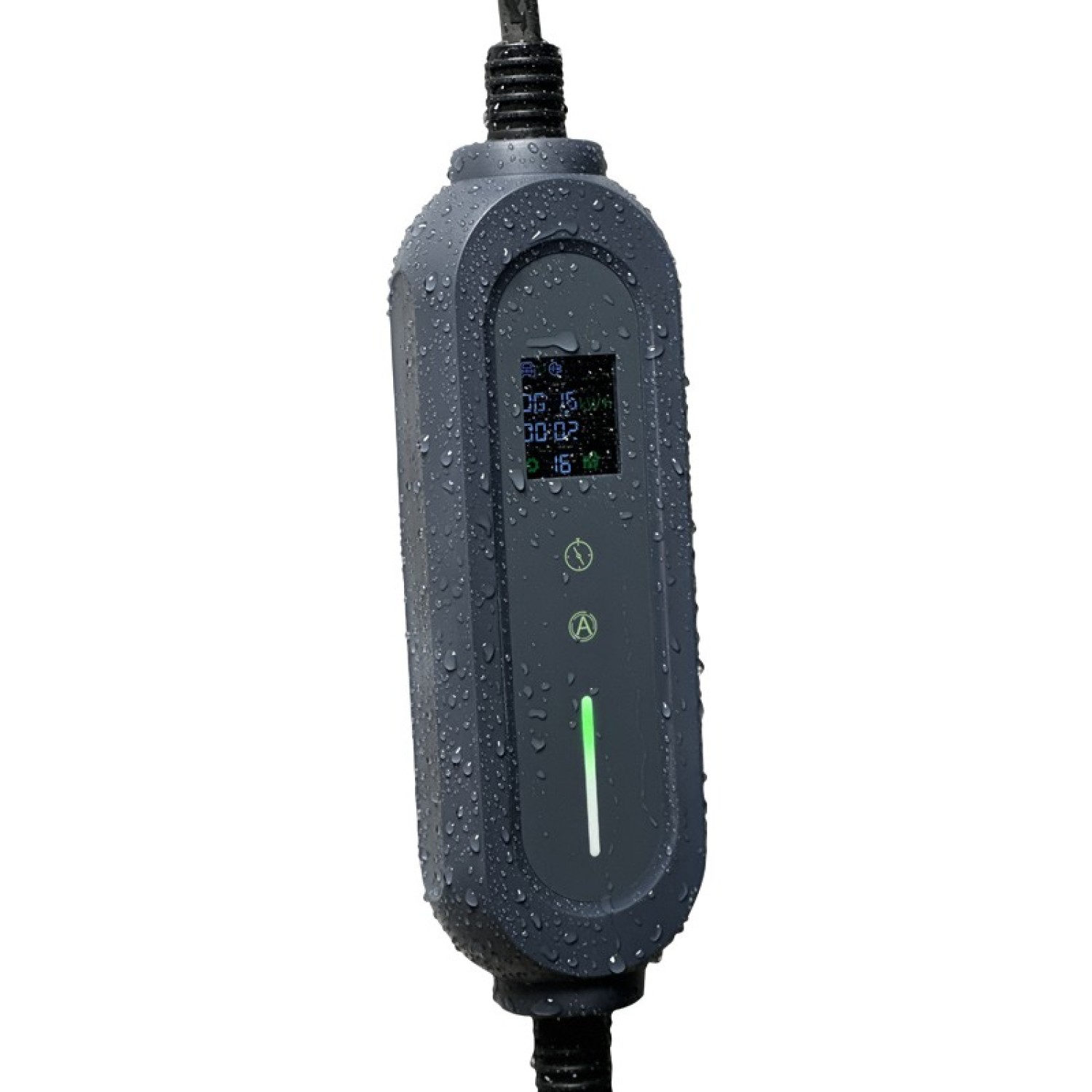

PORTABLE EV CHARGER 1PH 3,68KW 16A
PORTABLE EV CHARGER 1PH 3,68KW 16A
Product Code: AEAWPORT368
BARCODE: 5208055107025
Technical Specifications & Downloads
In Stock
Details &
Technical Specifications
| AC Output Rating Current | 16A |
| Installation | Portable |
| IP- Fluid and Dust Protection Indicator | IP66 |
| Charging Portal | Type 2 / IEC 62196/2 |
| Power Supply | 1-Phase |
| Working Temperature | -25°C~+55°C |
| Leakage Protection | Yes |
| Yes | |
| Over & Under Voltage Protection | Yes |
| Control | Touch screen |
| Grounding Protection | Yes |
| Power Line Protection | Yes |
| Display | LCD+LED Sing |
| Short Circuit Protection | Yes |
| Voltage (Volt) | 230V , 50Hz±2% |
| Over Temp Protection | Yes |
| AC Output Rating Power | 3,68KW |
| IK- Impact Protection Indicator | IK10 |
| Surge protection | Yes |
| Charging Cable Length | 5m |
| Overload Protection | Yes |
Files
For Architects & Designers
Download 3D models, technical datasheets, catalogs, and brochures ready to use at every stage of your design and study.
