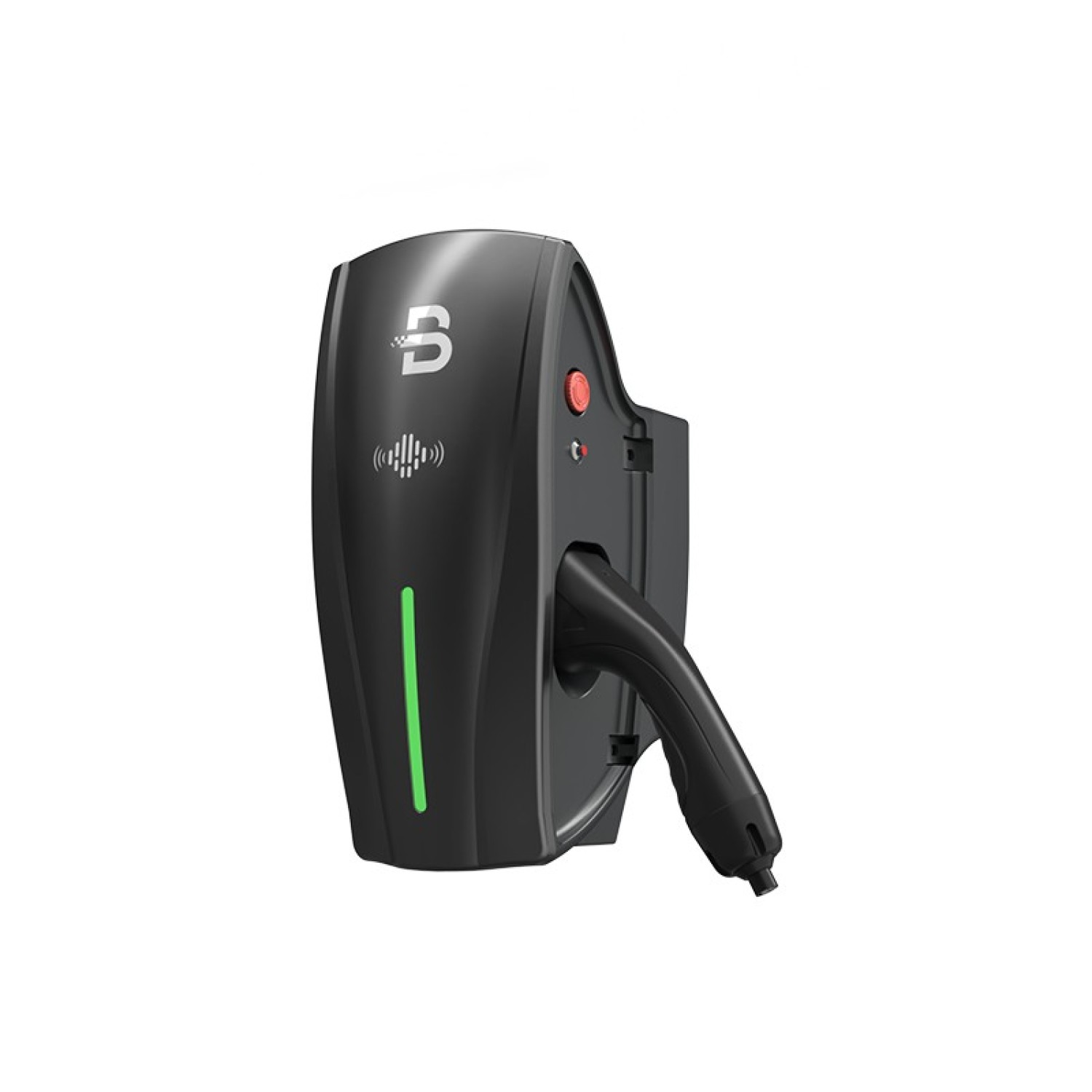

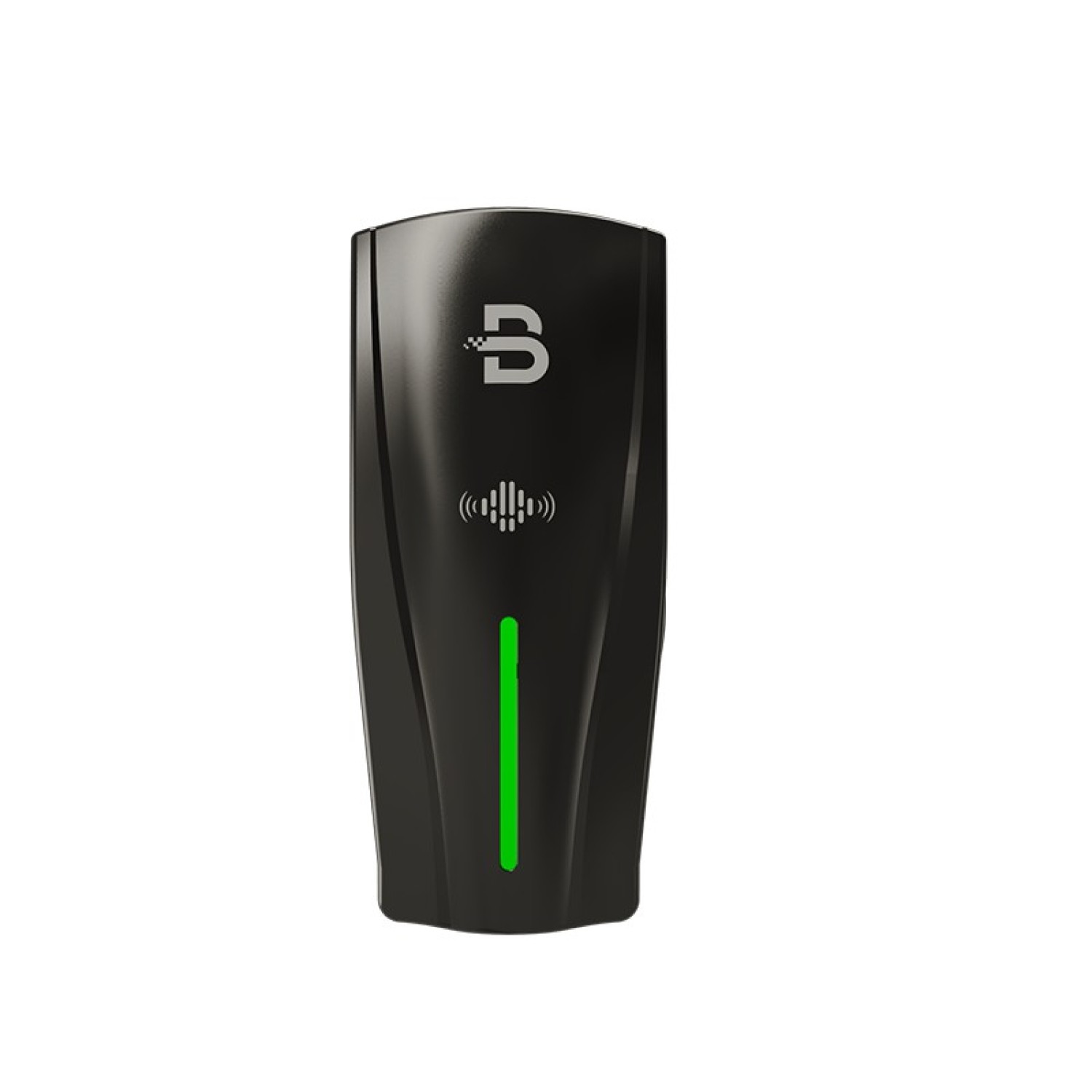

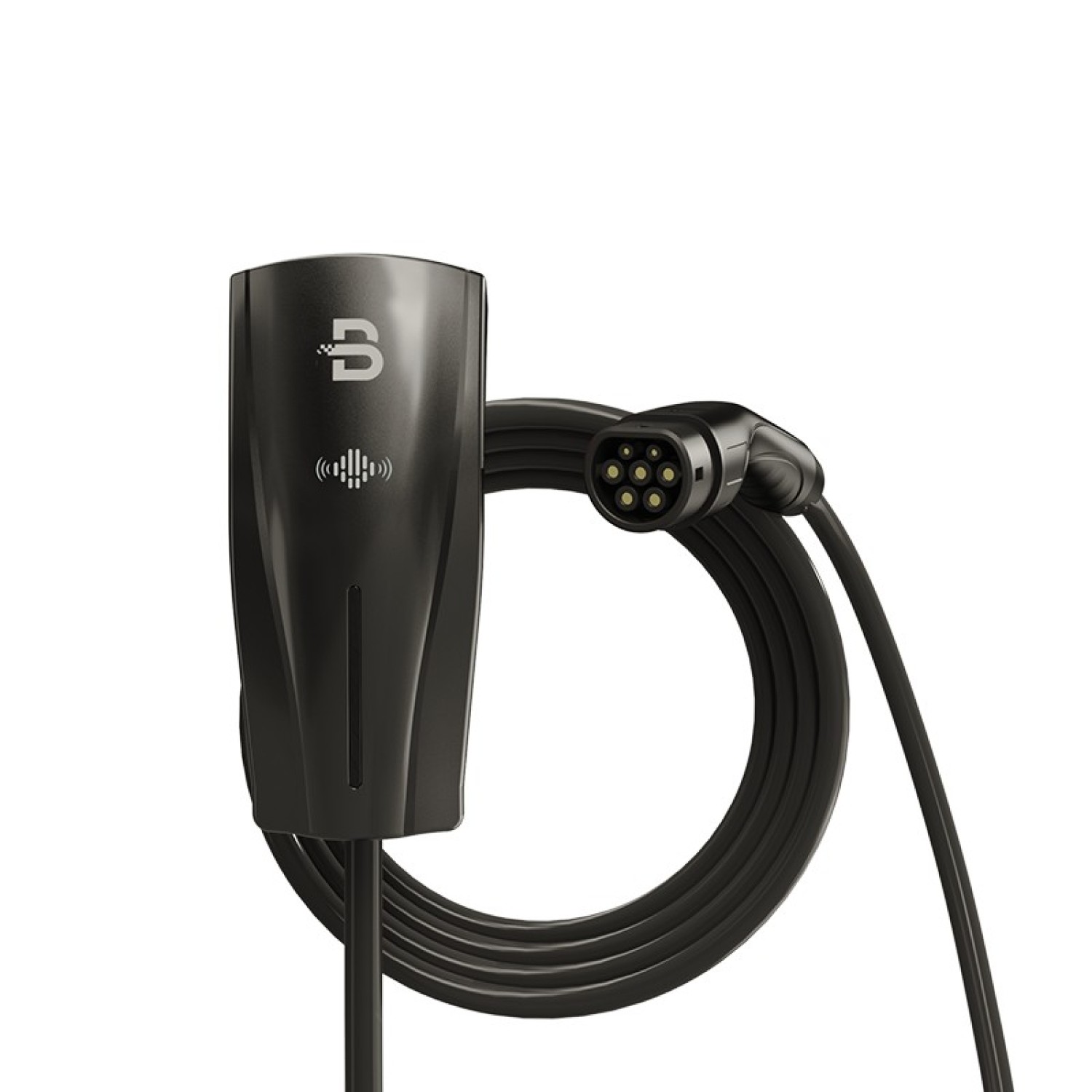

EV CHARGER TYPE 3 1PH 32A 7,4KW WITH 5m TETHERED CABLE TYPE 2
EV CHARGER TYPE 3 1PH 32A 7,4KW WITH 5m TETHERED CABLE TYPE 2
Product Code: BCP-A2N-L
Technical Specifications & Downloads
In Stock
Details &
Technical Specifications
| AC Output Rating Current | 32A |
| Installation | Wall / Mounting Pole |
| IP- Fluid and Dust Protection Indicator | IP65 |
| Charging Portal | Type 2 / IEC 62196/2 |
| Power Supply | 1-Phase |
| Working Temperature | -25°C~+55°C |
| Leakage Protection | Yes |
| Yes | |
| Connectivity | Ethernet RJ45/Wi-Fi/RS-485/4G OCPP1.6 Optional |
| Over & Under Voltage Protection | Yes |
| Control | Via RFID card or Mobile APP |
| Grounding Protection | Yes |
| Power Line Protection | Yes |
| Short Circuit Protection | Yes |
| Voltage (Volt) | 230V AC |
| Over Temp Protection | Yes |
| AC Output Rating Power | 7,4KW |
| IK- Impact Protection Indicator | IK10 |
| Surge protection | Yes |
| Charging Cable Length | 5m |
| Overload Protection | Yes |
