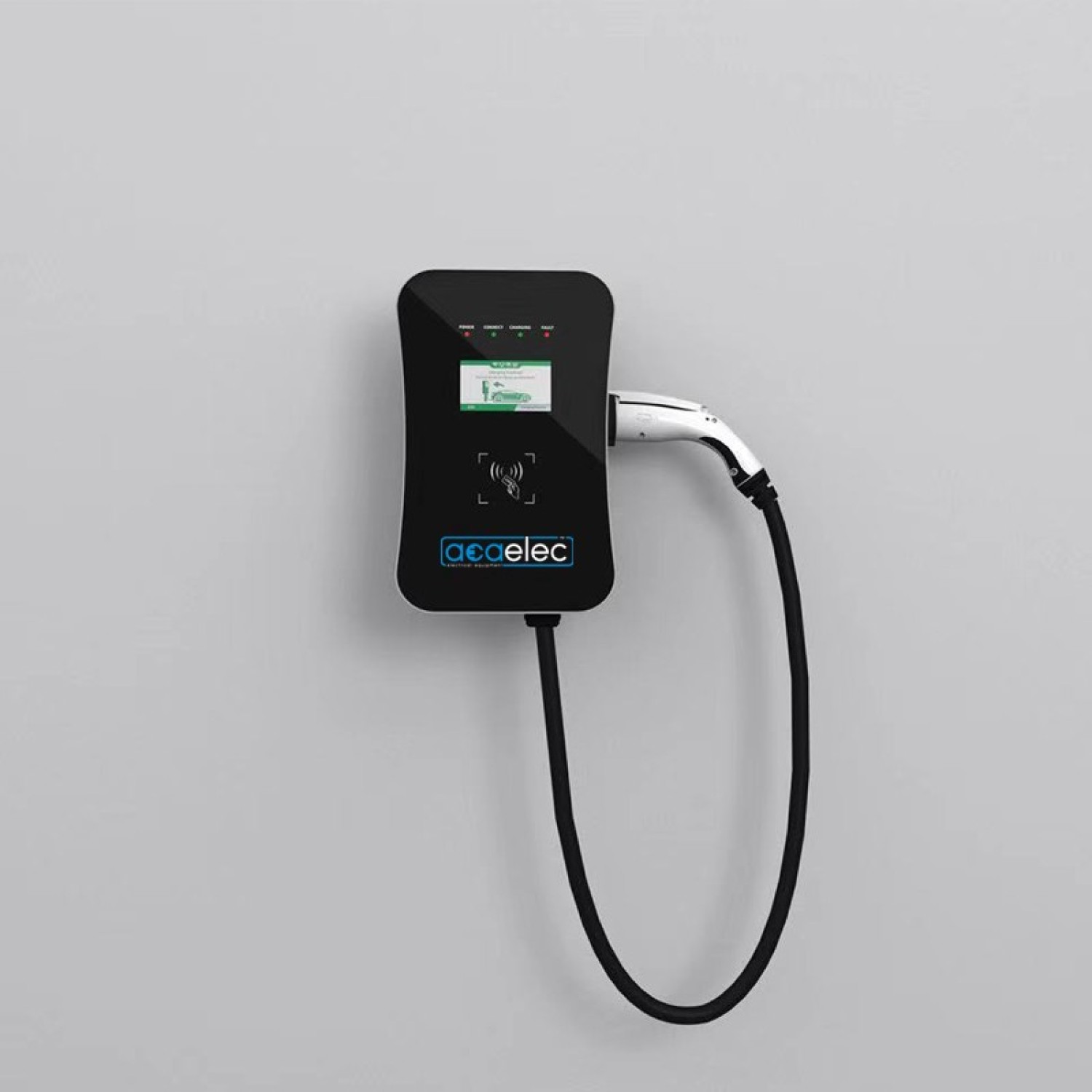

EV CHARGER CHARGING MODE 3 3PH 32A 22KW WITH PLUG 5m TYPE 2
AC charger with a power adapter and charging cable and built-in leakage protection against DC currents, overload protection, over-temp protection, etc.
Product Code: WM3W332EN
BARCODE: 5208055092253
Technical Specifications & Downloads
Not Availabe
Details &
Technical Specifications
| AC Output Rating Current | 32A |
| Installation | Wall / Mounting Pole |
| IP- Fluid and Dust Protection Indicator | IP54 |
| Charging Portal | Type 2 / IEC 62196/2 |
| Power Supply | 3-Phase |
| Working Temperature | -30°C-55°C |
| Leakage Protection | Yes |
| Yes | |
| Connectivity | Ethernet RJ45/Wi-Fi/RS-485/4G OCPP1.6 Optional |
| Over & Under Voltage Protection | Yes |
| Control | Via RFID card or Mobile APP |
| Grounding Protection | Yes |
| Power Line Protection | Yes |
| Display | LCD 4,3’’ |
| Short Circuit Protection | Yes |
| Voltage (Volt) | 400V AC, 50/60Hz |
| Over Temp Protection | Yes |
| AC Output Rating Power | 22KW |
| IK- Impact Protection Indicator | IK08 |
| Surge protection | Yes |
| Charging Cable Length | 5m |
| Overload Protection | Yes |
